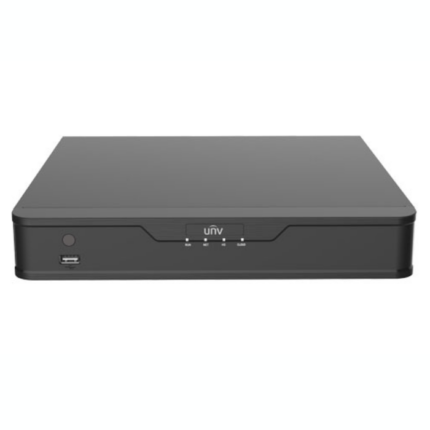

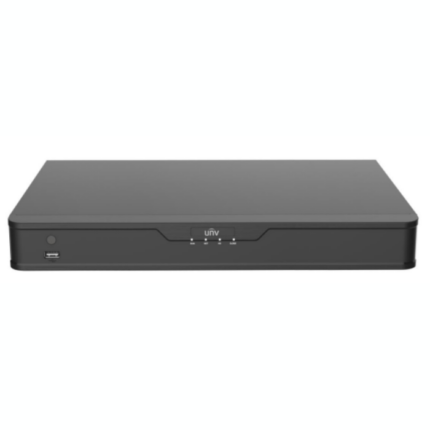

NVR UNIVIEW 8 CH 1 SATA NVR201-08Q

Name: NVR UNIVIEW 8 CH 1 SATA NVR201-08Q
SKU: NVR201-08Q
Availability: InStock

NVR pour caméras IP Gamme facile Vidéo Prise en charge des formats vidéo H.264 Prise en charge des caméras AHD, TVI, CVI, CVBS et IP avec accès adaptatif Entrée BNC 4/8 canaux Résolution jusqu’à 5 MP pour l’enregistrement Prise en charge d’une sortie HDMI 1 canal et VGA 1 canal jusqu’à 1920 x 1080P

UGS : NVR201-08Q Catégories : Enregistreur, Enregistreur NVR, RESEAUX ET SECURITE

384,000 DT

Paiement en 3x

Description

Model	NVR201-04U	NVR201-08Q
Video/Audio Input
Analog Video Input	4-ch, BNC	8-ch, BNC
IP Video Input	2-ch (only IP up to 6ch)	2-ch (only IP up to 10ch)
Supported Analog Camera Types	Support AHD input: 5MP@20fps 4MP@30fps 3MP@30fps 1080P@30 fps 720P@30fps Support TVI input: [email protected] 3MP@18fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input	Support AHD input: 3MP@30fps 1080P@30 fps 720P@30fps Support TVI input: 3MP@18fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Input	4-ch, RCA
Network
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	40Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output	/	1-ch, BNC
HDMI/VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution	5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF	3MP/1080p/720p/960H/4CIF/CIF/QCIF
Frame Rate	Mainstream: 5MP@10fps 4MP@12fps 3MP@16fps 1080P@25fp 720P@30fps 960H@30fpsSub stream: 960H/D1@16fps CIF/QCIF@25fps/30fps	Main stream: 3MP@8fps 1080p@12fps 720@30fps 960H@30fpsSub stream: 960H/D1@12fps CIF/QCIF@25fps/30fps
Audio Output	1-ch, RCA
Synchronous Playback	6-ch	10-ch
Decoding
Decoding format	H.264
Live View/Playback	8MP (IP)/5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF	8MP (IP)/3MP/1080p/720p/960H/4CIF/CIF/QCIF
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interfaces
Serial Interface	1xRS485
USB Interface	Rear panel: 1xUSB2.0, Front panel: 1xUSB2.0
General
Power Supply	12V DC Power Consumption: ≤ 5 W (without HDD)
Working Environment	-10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	260mm×240mm×47mm (10.2″×9.4″×1.8″)
Weight (without HDD)	≤ 1.12 Kg (2.47 lb)
