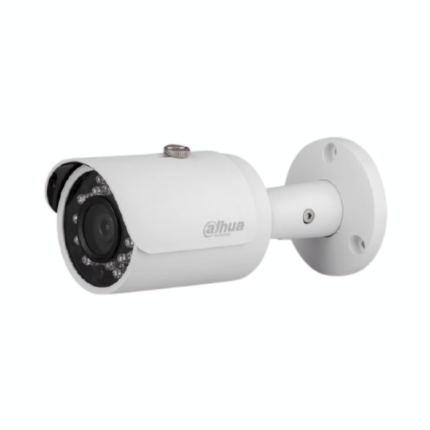

CAMERA TUBE HD DAHUA 4MP HAC-B2A41P

Name: CAMERA TUBE HD DAHUA 4MP HAC-B2A41P
Brand: DAHUA
SKU: HAC-B2A41P
Availability: InStock

Caméra HD TUBE 4MP a usage EXTERNE – Max. 30 ips à 4 MP – Sortie HD et SD commutable – Objectif fixe de 3,6 mm (2,8 mm, 6 mm en option) – Max. Longueur IR 20 m, Smart IR – IP67, 12 V CC

Brand:

UGS : HAC-B2A41P Catégories : Caméra HD, RESEAUX ET SECURITE, VidéoSurveillance

Le prix initial était : 257,000 DT.Le prix actuel est : 177,000 DT.

Réserver sans intérêt jusqu’à 6 mois

Description

Technical Specification
Camera
Image Sensor	1/2.7″ CMOS
Effective Pixels	2560(H)×1440(V), 4MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
			Minimum Illumination	0.04Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
			IR Distance	Up to 20m (66feet)
IR On/Off Control	Auto / Manual
			Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	3.6mm (2.8mm, 6mm Optional)
Max Aperture	F2.0
Angle of View	H: 76.4° (97°, 48.6°) V:41.6° (52°, 27.9°)
			Focus Control	N/A
Close Focus Distance	1400mm (800mm,2500mm) 55.12 » (31.50″,98.43 »)
			DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
				DORI Definition	Distance
						Detect	25px/m (8px/ft)	2.8mm:56m(184ft) 3.6mm: 80m(262ft) 6mm: 120m(394ft)
Observe	63px/m (19px/ft)	2.8mm:22m(73ft) 3.6mm: 32m(105ft) 6mm: 48m(157ft)
Recognize	125px/m (38px/ft)	2.8mm:11m(37ft) 3.6mm: 16m(52ft) 6mm: 24m(79ft)
Identify	250ppm (76px/ft)	2.8mm: 6m(18ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution	4MP (2560×1440)
Frame Rate	25/30fps@4MP,25/30fps@1080P
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night	Auto (ICR) / Manual
