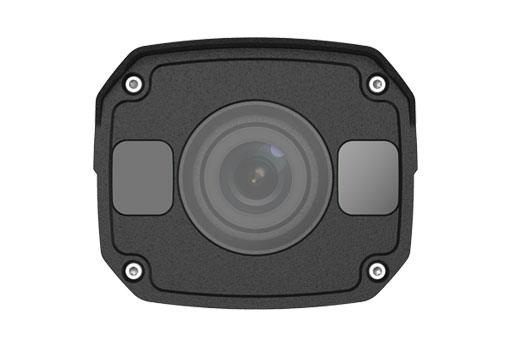

CAMERA IP 2MP TUBE UNV OBJ VF MOTORISÉ 30IR IPC2322LBR3-SPZ28-D

Name: CAMERA IP 2MP TUBE UNV OBJ VF MOTORISÉ 30IR IPC2322LBR3-SPZ28-D
Brand: UNIVIEW
SKU: IPC2322LBR3-SPZ28-D
Availability: InStock

CAMERA IP 2MP TUBE UNV MOTORISÉ 30IR a usage externe Fonctionnalité jour/nuit Smart IR, jusqu’à 30 m de distance IR,L’anti-reflet I R augmente la transmission infrarouge,DNR 2D/3D (réduction du bruit numérique)

Brand:

UGS : IPC2322LBR3-SPZ28-D Catégories : Caméra IP, RESEAUX ET SECURITE, VidéoSurveillance

390,000 DT

Réserver sans intérêt jusqu’à 6 mois

Description

Camera
Sensor	1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm, manual zoom lens				2.8 ~ 12mm, motorized zoom lens
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	42		16.8		8.4		4.2
	12	180		72		36		18
Angle of View (H)	112.7° ~ 28.1°
Angle of View (V)	60.1° ~ 15.4°
Angle of View (O)	146.5° ~ 33.2°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°				Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01Lux (F1.6, AGC ON) 0Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; Third Stream: D1 (704*576), Max 30fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Interface
Network	1 RJ45 100M Base-TX Ethernet
Edge Storage	MicroSD, up to 256GB
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 6.5W
Dimensions (L × W × H)	240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”)
Weight	1kg (2.2lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
